NFC Temperature Tag
Tap. Read. Trust the handover.
A stick-on tag that shows the real temperature of pharma and frozen-food shipments on any NFC smartphone — right at the moment goods change hands.
Also available as a dark-theme brochure.
The weakest link in a cold chain is the handover.
Medicines, vaccines and frozen foods change hands many times — warehouse, transporter, distributor, pharmacy, retailer. At each handover the receiver has to decide, on the spot, whether the goods are still at a safe temperature. Probe thermometers are slow, need opening the pack, and are often not at hand.
A thin, self-adhesive tag stays on the product or carton. Anyone with a phone can tap it and see the current temperature in about a second, accurate to ±0.5 °C — no data logger, no reader, no cables. Where continuous logging isn't required but a trustworthy check is, this is the simplest tool for the job.
Know the temperature with a tap
No extra equipment
Any NFC smartphone reads the tag. No dedicated readers to buy or carry.
Battery-free
Powered by the phone's NFC field, so there is no battery to run down.
Peel & stick
Self-adhesive on non-metallic cartons, trays and packs.
Stick. Tap. Decide.
- StickPeel the liner and press the tag onto the carton, vial tray or pack — any clean, non-metallic surface.
- TapHold an NFC-enabled smartphone near the tag. The phone's field wakes the tag and powers the measurement.
- DecideThe temperature appears on the phone instantly. Accept the goods, or flag them before signing for delivery.
Accuracy you can sign for

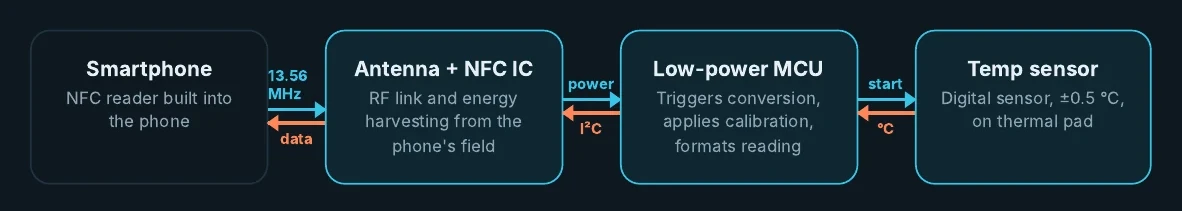

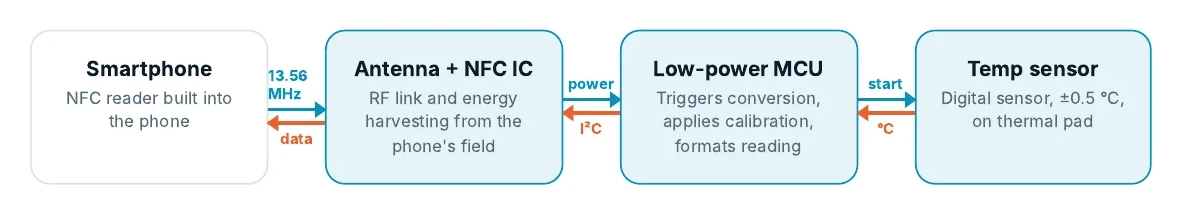

A dedicated digital temperature sensor sits on its own thermal pad. The phone's 13.56 MHz field powers the NFC IC, which wakes a low-power MCU to trigger a conversion, apply calibration and format the reading.
Discrete by design
Rather than a single all-in-one chip, the tag uses three dedicated parts — NFC front-end, microcontroller and precision sensor — each chosen for its job.
Better accuracy
A dedicated digital sensor on its own thermal pad delivers ±0.5 °C, tighter than the on-die sensors in typical single-chip NFC tags.
Room to grow
The MCU lets us add per-tag calibration, threshold alerts and custom data formats in firmware without redesigning the hardware.

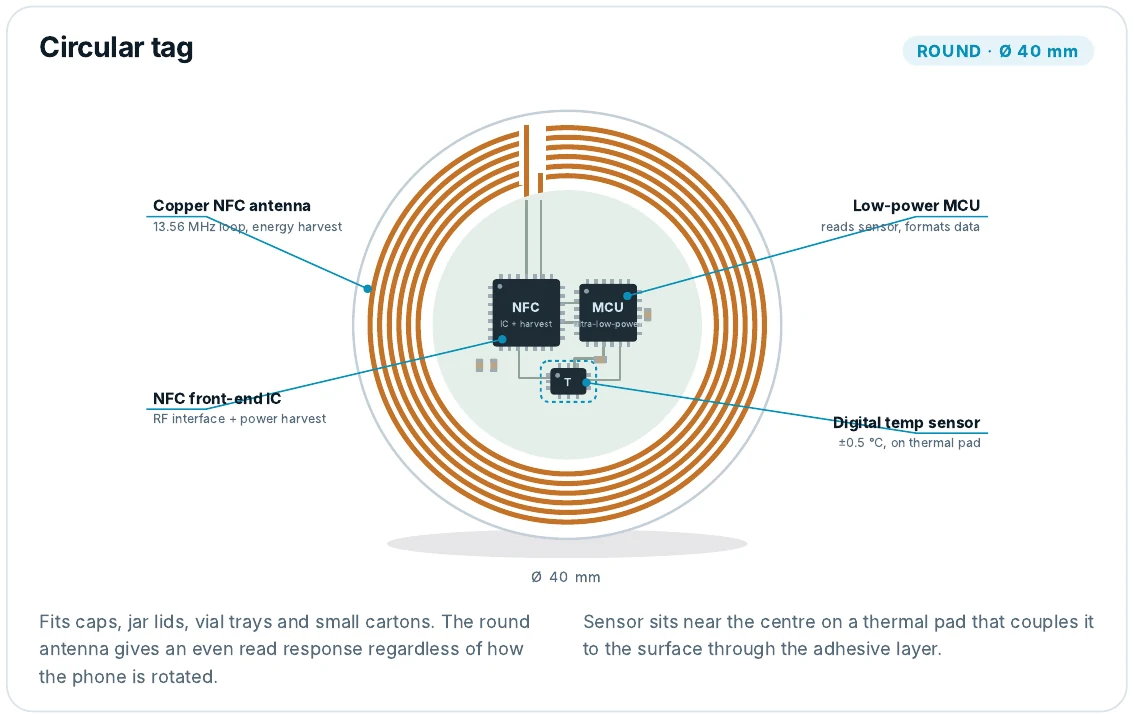

Circular or rectangular

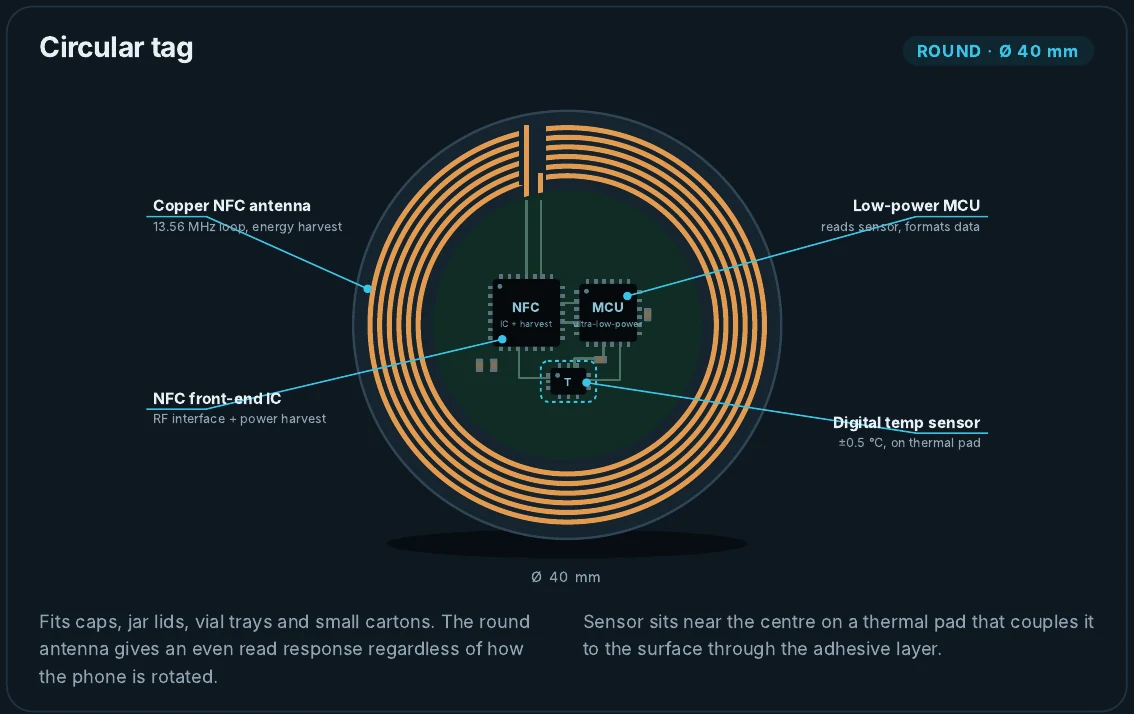

Circular, Ø 40 mm
For caps, jar lids and vial trays.
- Even read response in any orientation
- Fits round and small surfaces

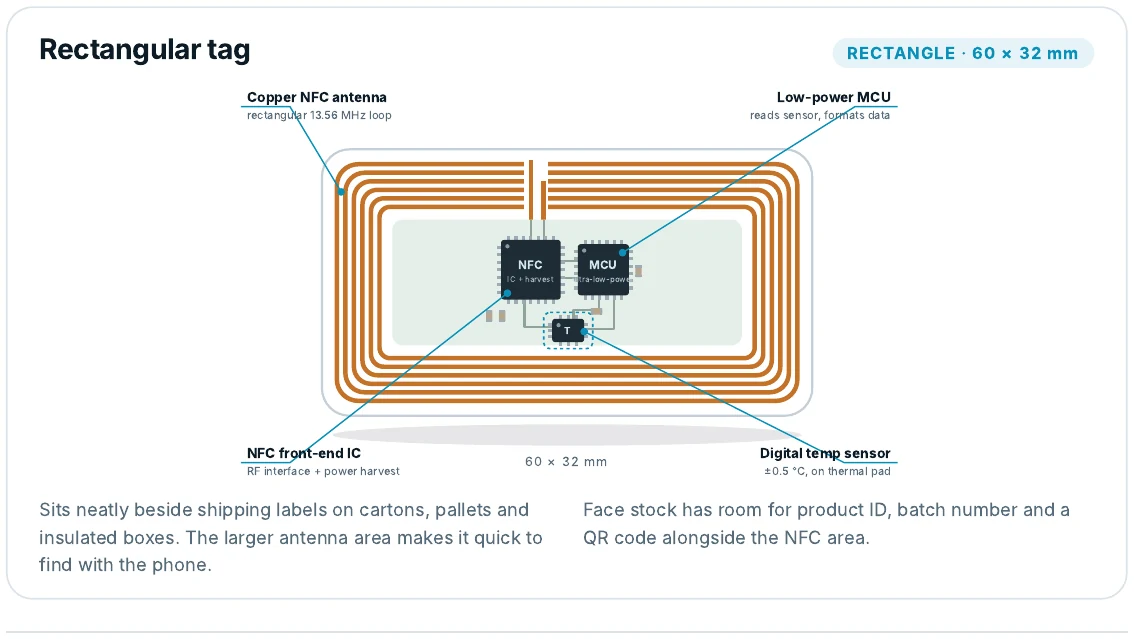

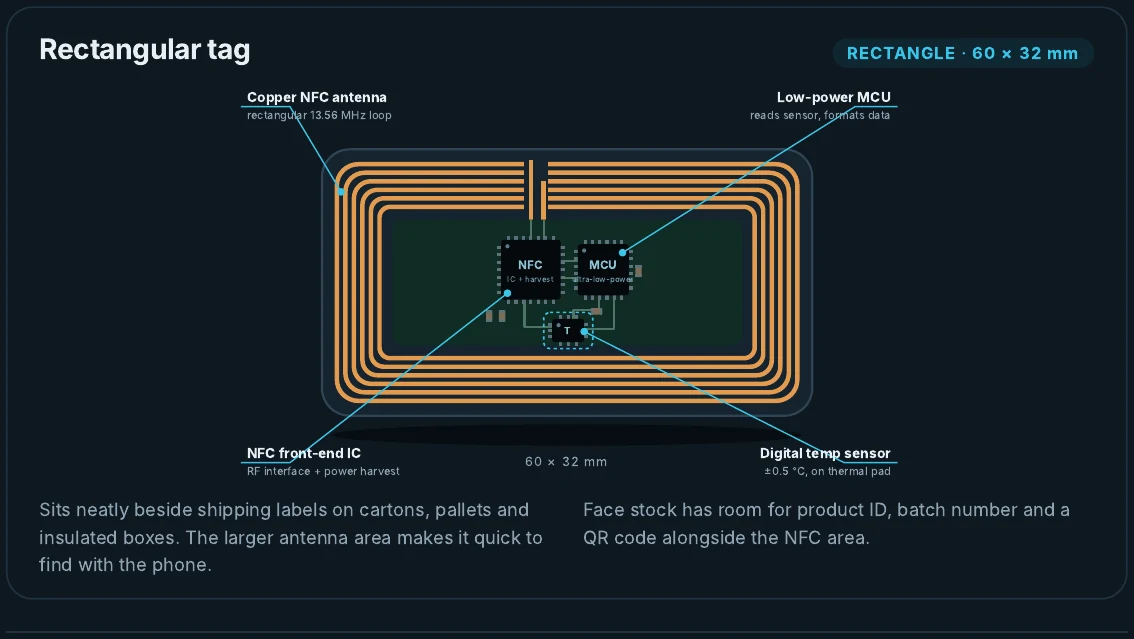

Rectangular, 60 × 32 mm
Sits beside shipping labels.
- Room for product ID, batch and QR code
- Lines up with carton labelling
Built for temperature-sensitive goods
Pharmaceuticals
2–8 °C shipments.
Vaccines & biologics
Frozen food
Cold-chain logistics
Labs & diagnostics
Dairy & perishables
Key specifications
- Accuracy
- ±0.5 °C
- Operating range
- −25 °C to +70 °C
- Resolution
- 0.1 °C
- Interface
- NFC 13.56 MHz (ISO/IEC 14443 / NFC Forum)
- Reader
- Any NFC smartphone
- Read distance
- Up to ~3 cm (phone dependent)
- Power
- Battery-free
- Architecture
- Discrete NFC IC + MCU + digital sensor
- Form factors
- Circular Ø 40 mm · Rectangular 60 × 32 mm
- Mounting
- Self-adhesive, non-metallic surfaces
- Data logging
- Not required: on-demand spot reading
Not for direct mounting on metal; use a ferrite spacer.
Four thin layers
- Face stock
- Printed top layer for branding, ID and instructions
- Flex PCB inlay
- Antenna coil, NFC IC, MCU and sensor
- Adhesive
- Thermal-transfer adhesive couples the sensor to the pack
- Release liner
- Peeled off at application
Frequently asked questions
Do I need a special reader?
No. Any NFC-enabled smartphone reads the tag.
Does the tag have a battery?
No. It is battery-free and is powered by the phone's NFC field while it takes the reading.
How accurate is it?
±0.5 °C with 0.1 °C resolution, over an operating range of −25 °C to +70 °C.
Can it be stuck on metal?
Not directly. Mount it on non-metallic surfaces such as cartons, trays and packs, or use a ferrite spacer on metal.
Related solutions
Large Scale IoT Platform
One cloud for every field device. A multi-tenant IoT platform for fleets of 200,000+ devices, with dashboards, rules, alerts, remote configuration and over-the-air upgrades.
View details
Solar Fence IoT Monitoring System
Know the moment your electric fence stops protecting you. Wireless sensing nodes watch every stretch and report faults to your phone.
View detailsPilot it in your cold chain
Samples, custom sizes, branding and firmware thresholds are available on request.
